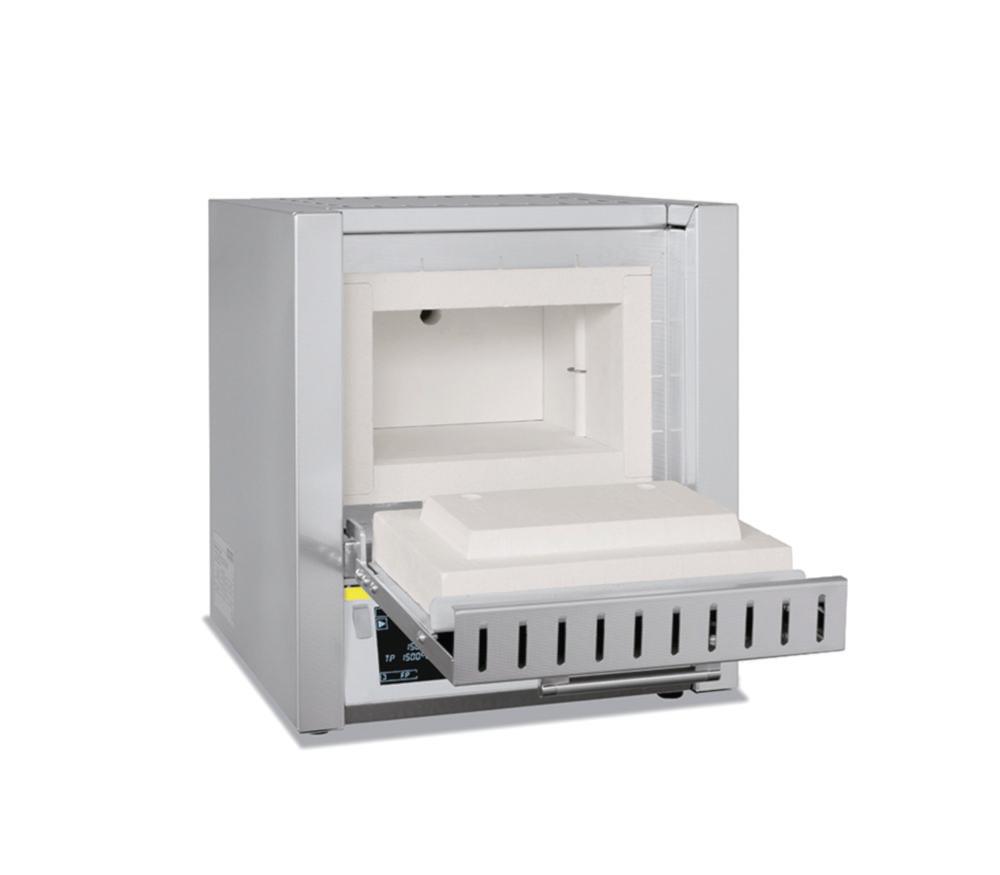

Representative image only
Muffle furnace L 9/14/B510 Heatpower max. 1400°C with Fiber Insulation and Flap Door
Sold by: Venktron DMCC
Available Soon
Part #: 4.665 083Manufacturer #: L-095K4ANL
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
- Max. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C)
- Heating elements on support tubes for free heat radiation, short heating times and long service life
- Heating from two sides
- Flap door can be used as work platform
Product Specifications
- HS Code #85141980
- Depth int.250 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)530 x 525 x 630 mm
- Ext. depth525 mm
- Ext. height630 mm
- Ext. width530 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)250 x 250 x 170 mm
- Int. width250 mm
- Max. temperature1400 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity9 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3200 W
- TypeL 9/14/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight55 kg
- Manufacturer Article NumberL-095K4ANL
- Dual Use0
Muffle furnace L 9/14/B510 Heatpower max. 1400°C with Fiber Insulation and Flap Door
AED 30٬356٫26
