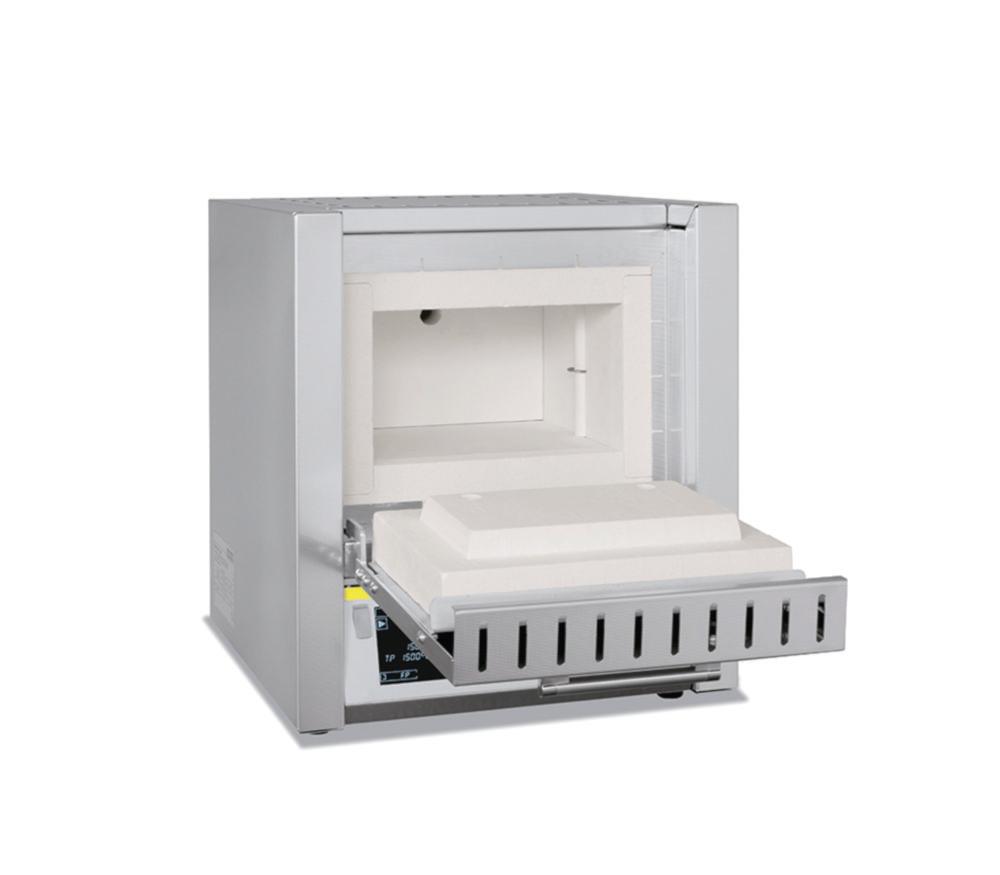

Representative image only
Muffle furnace L 15/14/C550 Heatpower max. 1400°C with Fiber Insulation and Flap Door
Sold by: Venktron DMCC
Available Soon
Part #: 4.665 090Manufacturer #: L-155K4ANO
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
- Max. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C)
- Heating elements on support tubes for free heat radiation, short heating times and long service life
- Heating from two sides
- Flap door can be used as work platform
Product Specifications
- HS Code #85141980
- Depth int.350 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)530 x 625 x 630 mm
- Ext. depth625 mm
- Ext. height630 mm
- Ext. width530 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)250 x 350 x 170 mm
- Int. width250 mm
- Max. temperature1400 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity15 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3200 W
- TypeL 15/14/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight63 kg
- Manufacturer Article NumberL-155K4ANO
Muffle furnace L 15/14/C550 Heatpower max. 1400°C with Fiber Insulation and Flap Door
AED 35٬860٫00
Variant products
Products related to this item (5)
Product | Mfr # | Part # | Product Name | Type of door | Plug type | Price | Availability | |
L-095K4ANL | 4.665 083 | Muffle furnace L 9/14/B510 Heatpower max. 1400°C with Fiber Insulation and Flap Door | Flap door | EU | 30٬356٫26 | |||
L-155K4ANL1 | 4.665 085 | Muffle furnace L 15/14/B510 Heatpower max. 1400°C with Fiber Insulation and Flap Door | Flap door | EU | 32٬174٫12 | |||
L-055K4ANO | 4.665 088 | Muffle furnace L 5/14/C550 Heatpower max. 1400°C with Fiber Insulation and Flap Door | Flap door | EU | 30٬452٫37 | |||
L-055K4ANL | 4.665 082 | Muffle furnace L 5/14/B510 Heatpower max. 1400°C with Fiber Insulation and Flap Door | Flap door | EU | 26٬766٫50 | |||
L-095K4ANO | 4.665 089 | Muffle furnace L 9/14/C550 Heatpower max. 1400°C with Fiber Insulation and Flap Door | Flap door | EU | 34٬042٫13 |
