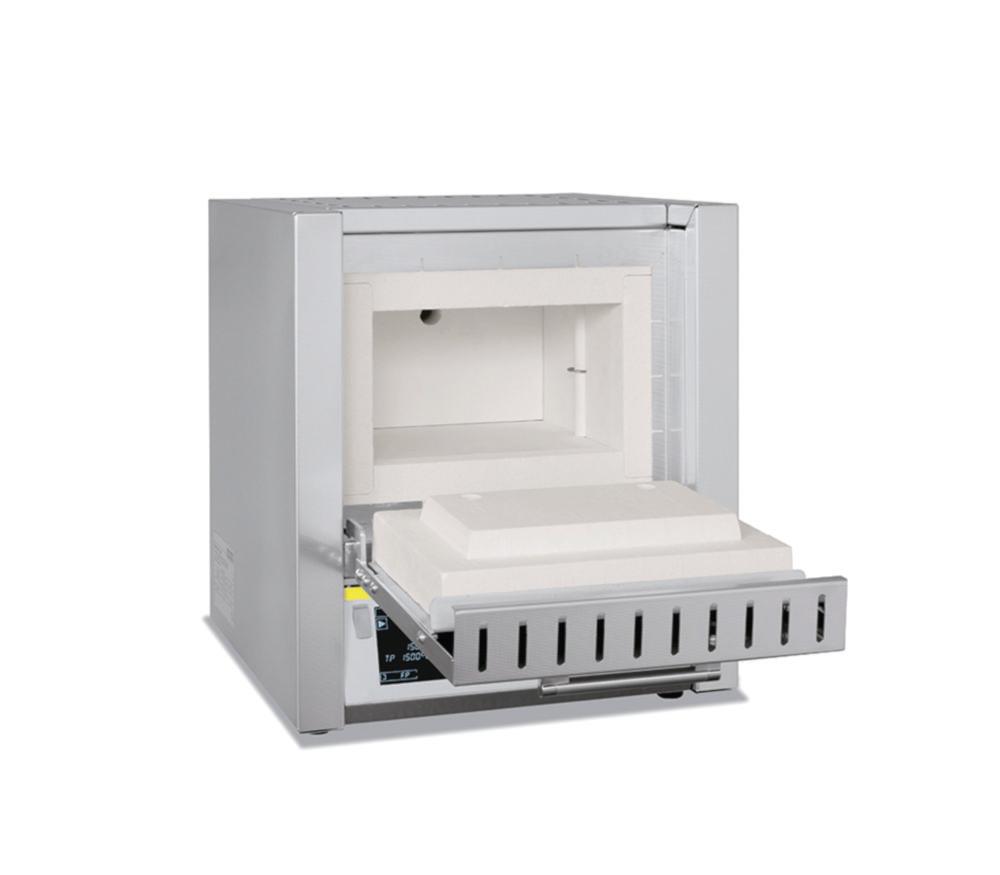

Representative image only
Muffle furnaces L 15/11/B510 temperature max 1100°C
Sold by: Venktron DMCC
Available Soon
Part #: 6.056 446Manufacturer #: L-155K1ANL
Estimated shipping time:Contact us via live chat or via contact us page
Price includes VAT
Product overview
- Ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace
- Heating from two sides (three sides for interior volumes of 24 and 40 l)
- Flap door can be used as work platform
Product Specifications
- HS Code #85141980
- Depth int.340 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)415 x 555 x 515 mm
- Ext. depth555 mm
- Ext. height515 mm
- Ext. width415 mm
- Power supply frequency50/60 Hz
- Height int.170 mm
- Int. Dim. (WxDxH)230 x 340 x 170 mm
- Int. width230 mm
- Max. temperature1100 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity15 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity3200 W
- TypeL 15/11/B510
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight40 kg
- Manufacturer Article NumberL-155K1ANL
- Dual Use0
Downloads
- Nabertherm Laboratory Muffle Furnaces Operating InstructionsDownload
Muffle furnaces L 15/11/B510 temperature max 1100°C
AED 23٬126٫59
Variant products
Products related to this item (13)
Product | Mfr # | Part # | Product Name | Type of door | Plug type | Price | Availability | |
L-095K1ANO | 9.764 509 | Muffle furnaces L 9/11/C550 with controller, 230V, cap. 9 ltrs | Flap door | EU | 23٬222٫70 | |||
L-055K1ANO | 9.764 505 | Muffle furnaces L 5/11/C550 with controller | Flap door | EU | 22٬169٫60 | |||
L-055K1ANL | 6.092 769 | Muffle furnace L 5/11/B510 capacity 5 l, power 2,5 KW heating capacity max. 1100°C | Flap door | EU | 18٬579٫83 | |||
L-245K1ANL | 6.206 861 | Muffle furnaces L 24/11/B510 with controller 400 volt | Flap door | CEE | 30٬690٫58 | |||
L-035K1ANO | 9.764 503 | Muffle furnaces, L 3/11/C550 upto +1100°C, cap. 3 ltrs | Flap door | EU | 18٬291٫48 | |||
L-405K1ANL | 7.660 691 | Muffle furnace L 40/11/B510 with controller B510 Tmax 1100°C, 400 V | Flap door | CEE | 32٬078٫00 | |||
L-405K1ANO | 9.764 506 | Muffle furnaces L 40/11/C550 with controller 400 volt | Flap door | CEE | 35٬667٫76 | |||
L-245K1ANO | 9.764 504 | Muffle furnaces L 24/11/C550 with controller 400 V | Flap door | CEE | 34٬280٫34 | |||
L-095K1ANL CH | 6.284 803 | Muffle Furnaces L 9/11/B510 CH 1100°C, with CH plug | Flap door | CH | 19٬632٫94 | |||
L-155K1ANO | 9.764 507 | Muffle furnaces L 15/11/C550 with controller, 230V | Flap door | EU | 26٬716٫35 | |||
L-095K1ANL | 6.302 391 | Muffle Furnaces L 9/11/B510 1100°C | Flap door | EU | 19٬632٫94 | |||
L-055K1ANL CH | 6.283 661 | Muffle furnace L 5/11/B510 CH 5 l, w.hinge door, power 2.5KW, max. 1100°C with CH plug black, rewireable for supply line | Flap door | CH | 18٬579٫83 | |||
L-035K1ANL | 6.321 436 | Muffle furnace L 3/11/B510 max. +1100°C | Flap door | EU | 14٬701٫72 |
